VISIPRO Pallet Rack Protector



High Visibility Pallet Rack Upright Protector

The VISIPRO Pallet Rack Protector is a low cost guarding solution for the low risk intermediate uprights within the pallet rack structure.


  • Description
    • Low Cost Pallet Rack Protector.
    • Tough Impact Resistant.
    • High Visibility Yellow Colour.
    • Energy Absorbing Inner Pad.
    • Easily Fitted and Removed.
    • No Floor Fixings Needed.
    • Certified to Impact Loads specified in European Standard EN 15512-2009.
    • Made from Polyethylene Compounded Plastic.

    ALKON VISIPRO CABLE TIE
    Are No : AVQ.
    Std. pack : 50 pcs. per ctn.
    Two cable ties required for each protector. Additional cable ties can be ordered separately.
    Size : 610mm (W) X 16mm (H)
    Made from Nylon plastic.

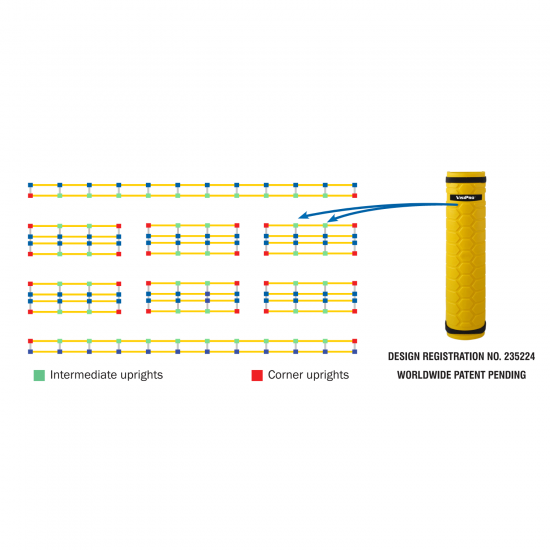

    Intermediate Uprights
    • Frontal Impact
    • Struck by Pallet
    • Low Risk
    • Low Cost Protection

    Corner Uprights

    • Frontal and Side Impact
    • Struck by Fork Lift
    • High Risk
    • Independent Steel Guard
  • Specifications

    ART NO

    DESCRIPTION

    STD. PACK

    AVS1

    VISIPRO Rack Upright Protector - 75mm (W) X 500mm (H)
    For Rack Uprights from 50mm To 63mm width.

    30
    AVS2

    VISIPRO Rack Upright Protector - 88mm (W) X 500mm (H)
    For Rack Uprights from 63mm To 76mm width.

    24

    AVAVISIPRO Rack Upright Protector - 95mm (W) X 500mm (H)
    For Rack Uprights from 70mm To 83mm width.

    24

    AVBVISIPRO Rack Upright Protector - 104mm (W) X 500mm (H)
    For Rack Uprights from 79mm To 92mm width.

    21

    AVCVISIPRO Rack Upright Protector - 17mm (W) X 500mm (H)
    For Rack Uprights from 92mm To 105mm width.

    18

    AVDVISIPRO Rack Upright Protector - 130mm (W) X 500mm(H)
    For Rack Uprights from 105mm To 118mm width.

    18

    AVEVISIPRO Rack Upright Protector - 143mm (W) X 500mm (H)
    For Rack Uprights from 118mm To 131mm width.

    15

    AVFVISIPRO Rack Upright Protector - 155mm (W) X 500mm (H)
    For Rack Uprights from 130mm To 143mm width.

    12

    AVGVISIPRO Rack Upright Protector - 170mm (W) X 500mm (H)
    For Rack Uprights from 143mm To 156mm width.

    10
